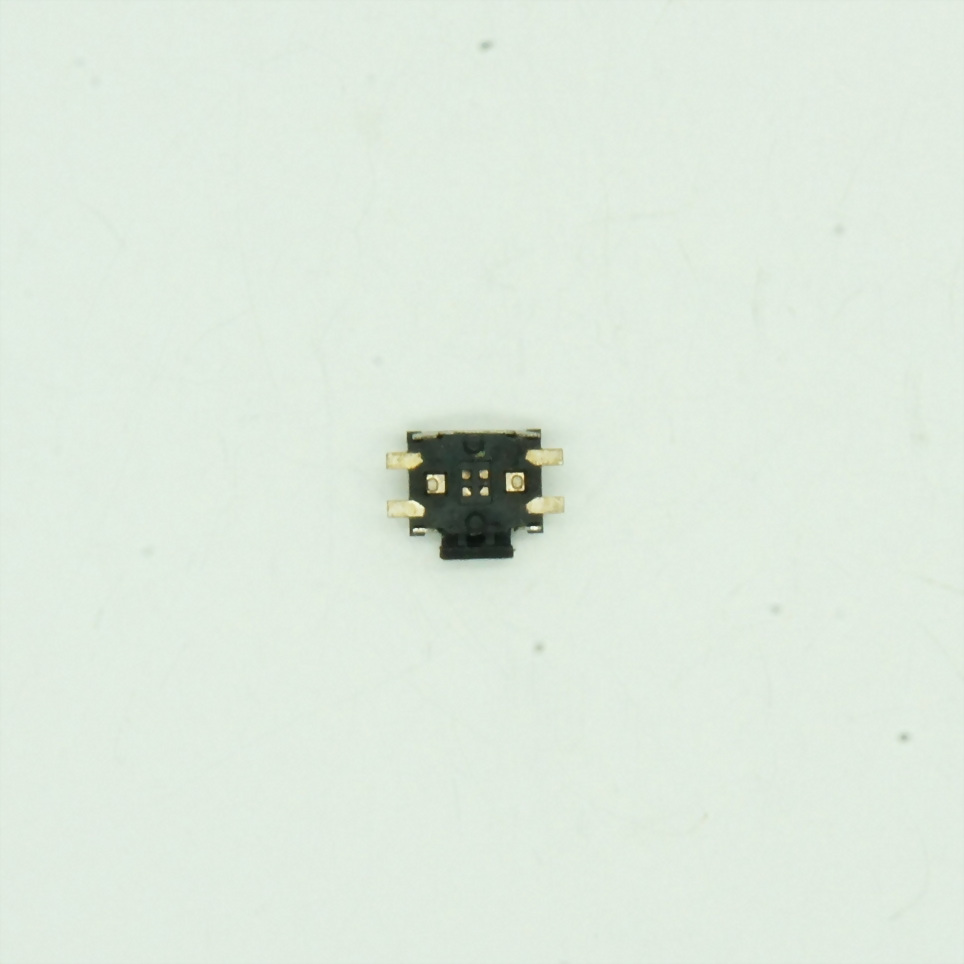

Model : TS-016

Q'ty :

Add To Inquiry

1. RATING    (額 定 值) :DC 12V  50mA

2. CONTACT RESISTANCE (接觸電阻):50mΩ MAX.

3. INSULATION RESISTANCE (絕緣電阻):100MΩ MIN.

4. DIELECTRIC STRENGTH (耐電壓):AC 250V / 1MIN.

5. OPERATING FORCE (作動力):160G / 260G

6. OPERATING TEMPERATURE  (使用溫度):-20℃~+70℃

7. LIFE TEST (壽命試驗):100000 CYCLES
