• SS12F45  SERIES
  • SS12F45  SERIES

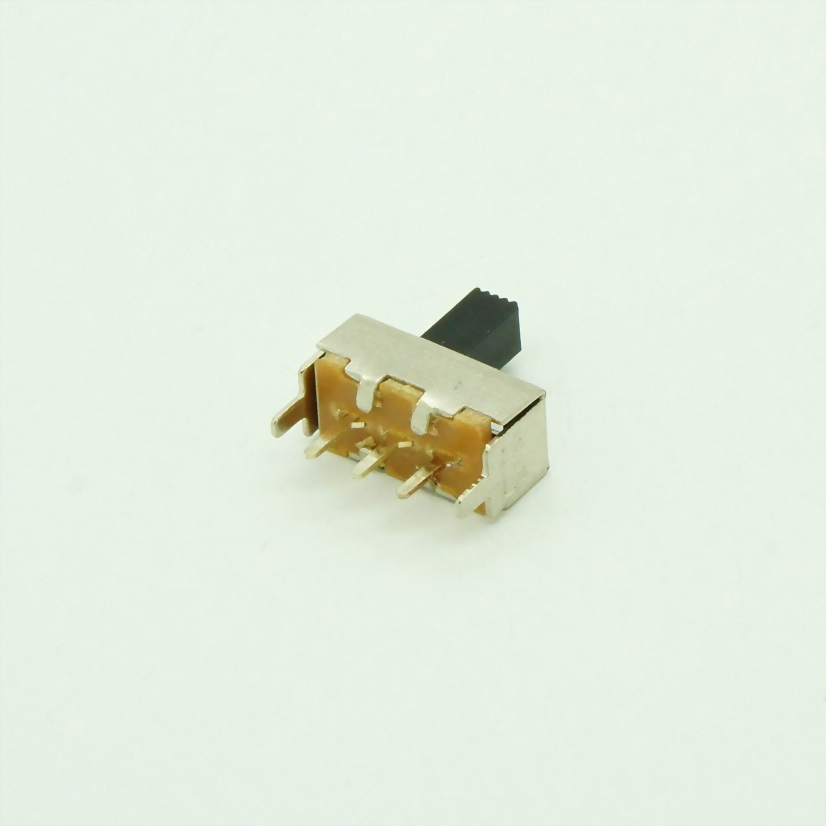

Model : SS12F45 SERIES

Q'ty :

Add To Inquiry

1. RATING    (額 定 值) :0.5A   50VDC

2. CONTACT RESISTANCE (接觸電阻):30 mΩ MAX.

3. INSULATION RESISTANCE (絕緣電阻):100 MΩ MIN.

4. DIELECTRIC STRENGTH (耐電壓):AC 500V / 1MIN.

5. OPERATING FORCE (作動力):300±100gf

6. OPERATING TEMPERATURE  (使用溫度):-25℃~+85℃

7. CIRCUIT (電路作動) :ON-ON (1P2T)

8. LIFE TEST (電氣壽命試驗):10000 CYCLES
